X,Y좌표리습을 선배님들 도움으로 X,Z로 바꿔서 사용중인데요.

(X=Z , Y=X (X좌표는 x2로 출력))

((((좌표 마지막이 정수로 떨어질 시 숫자 뒤에 (.)이 찍히도록 사용중인데,))))

정수 마지막 숫자가

짝수로 떨어지면 (.)이 찍히는데

홀수로 떨어지면 (.)이 안찍히네요.

EX)  X1988.    (끝자리 숫자가 8(짝수)라서 숫자 마지막에 . 찍힘)

X1987    (끝자리 숫자가 7(홀수)라서 숫자 마지막에 . 안찍힘)

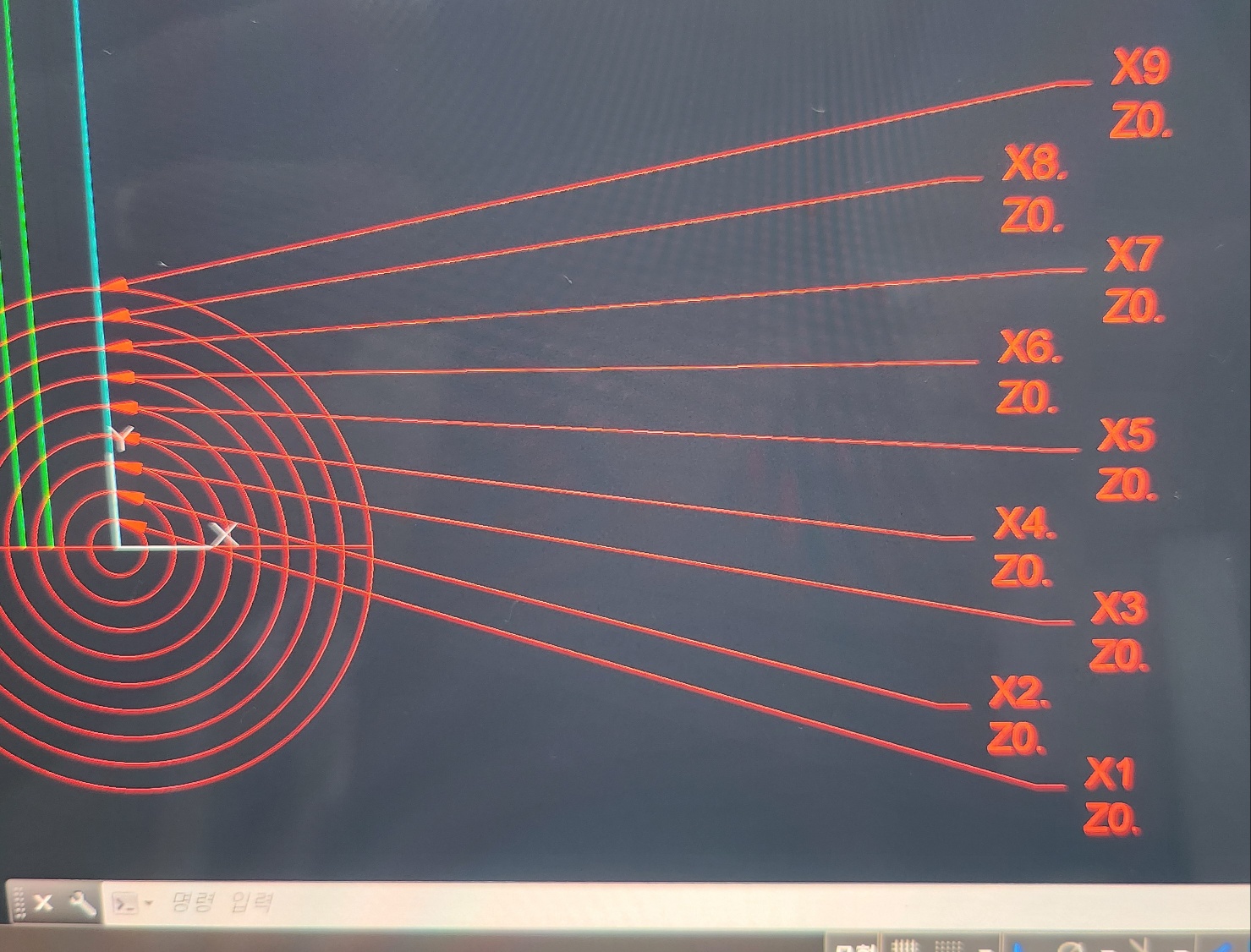

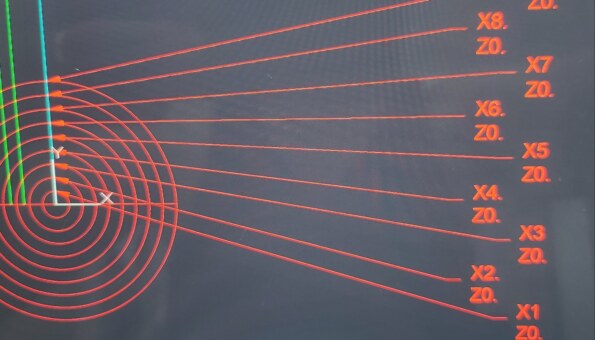

위의 설명과 같은 내용이 포함된 이미지 첨부했습니다. 하단에 프로그램도 첨부합니다.

원 제작자분께 감사드리며, 도움 부탁드립니다

—출처—

Created by Trusted

Naver Blog : https://blog.naver.com/trusted_dwg

——————————————————————————————————————-

(defun c:ZX( / makeLayer maketextstyle searchmleaderstyle makemleaderstyle oldlayer oldcmleaderstyle pt1 pt2 xcoordinate ycoordinate allcoordinate)

(vl-load-com)

(defun makeLayer (newlayername newlayerColor)

(entmake

(list

(cons 0 “LAYER”)

(cons 100 “AcDbSymbolTableRecord”)

(cons 100 “AcDbLayerTableRecord”)

(cons 2 newlayername) ;layer name

(cons 70 0)

(cons 62 newlayerColor) ;layer color

)

)

)

(defun maketextstyle (newstylename)

(entmake

(list

(cons 0 “style”)

(cons 100 “AcDbSymbolTableRecord”)

(cons 100 “AcDbTextStyleTableRecord”)

(cons 2 newstylename) ;style name

(cons 3 “arial.ttf”) ;font

;(cons 4 “whgtxt.shx”) ;bigfont

(cons 70 0)

(cons 40 0) ;fixed height / 0=non

(cons 41 1) ;width factor

(cons 50 0) ;oblique angle

(cons 71 0) ;2=mirrored in X / 4=mirrored in Y

)

)

)

(defun searchmleaderstyle (mleaderstylename / mleaderstyledict searchresult)

(if

(setq mleaderstyledict (dictsearch (namedobjdict) “acad_mleaderstyle”))

(foreach x mleaderstyledict

(if

(and

(= (car x) 3)

(eq (strcase (cdr x)) (strcase mleaderstylename))

)

(setq searchresult t)

)

)

)

searchresult

)

(defun makemleaderstyle (newmleadername newmleadertextstyle)

(setq mleaderstyles (vla-item (vla-get-Dictionaries (vla-get-ActiveDocument (vlax-get-acad-object))) “ACAD_MLEADERSTYLE”))

(setq newmleaderstyle (vla-AddObject mleaderstyles newmleadername “AcDbMLeaderStyle”))

(vla-put-TextStyle newmleaderstyle newmleadertextstyle)

(vla-put-TextAngleType newmleaderstyle “1”)

(vla-put-ArrowSize newmleaderstyle “100”)

(vla-put-DoglegLength newmleaderstyle “100”)

(vla-put-TextHeight newmleaderstyle “100”)

(vla-put-TextLeftAttachmentType newmleaderstyle “3”)

(vla-put-TextRightAttachmentType newmleaderstyle “3”)

)

(if

(= (tblsearch “style” “xycoordinates”) nil)

(maketextstyle “xycoordinates”)

(princ)

)

(setq oldlayer (getvar “clayer”))

(if

(= (tblsearch “layer” “xycoordinates”) nil)

(progn

(makelayer “xycoordinates” 1)

(setvar “clayer” “xycoordinates”)

)

(setvar “clayer” “xycoordinates”)

)

(setq oldcmleaderstyle (getvar “cmleaderstyle”))

(if

(= (searchmleaderstyle “xycoordinates”) nil)

(progn

(makemleaderstyle “xycoordinates” “xycoordinates”)

(setvar “cmleaderstyle” “xycoordinates”)

)

(setvar “cmleaderstyle” “xycoordinates”)

)

(setq pt1 (getpoint “nClick point to measure”))

(if pt1

(progn

(if (not (vl-string-search “.” (rtos (car pt1) 2 3))) ;Z좌표

(setq xcoordinate (strcat “Z” (rtos (car pt1) 2 3) “.”))

(setq xcoordinate (strcat “Z” (rtos (car pt1) 2 3)))

)

(if (not (vl-string-search “.” (rtos (cadr pt1) 2 3))) ;X좌표(지름값-좌표*2)

(setq ycoordinate (strcat “X” (rtos (*(cadr pt1)2) 2 3) “.”))

(setq ycoordinate (strcat “X” (rtos (*(cadr pt1)2) 2 3)))

)

(setq allcoordinate (strcat Ycoordinate “n” Xcoordinate))

(command “mleader” pt1 pause allcoordinate)

)

)

(setvar “clayer” oldlayer)

(setvar “cmleaderstyle” oldcmleaderstyle)

(princ)

)

(defun c:ZXC( / makeLayer maketextstyle searchmleaderstyle makemleaderstyle newvalue mleaderstyles newmleaderstyle)

(vl-load-com)

(defun makeLayer (newlayername newlayerColor)

(entmake

(list

(cons 0 “LAYER”)

(cons 100 “AcDbSymbolTableRecord”)

(cons 100 “AcDbLayerTableRecord”)

(cons 2 newlayername) ;layer name

(cons 70 0)

(cons 62 newlayerColor) ;layer color

)

)

)

(defun maketextstyle (newstylename)

(entmake

(list

(cons 0 “style”)

(cons 100 “AcDbSymbolTableRecord”)

(cons 100 “AcDbTextStyleTableRecord”)

(cons 2 newstylename) ;style name

(cons 3 “arial.ttf”) ;font

;(cons 4 “whgtxt.shx”) ;bigfont

(cons 70 0)

(cons 40 0) ;fixed height / 0=non

(cons 41 1) ;width factor

(cons 50 0) ;oblique angle

(cons 71 0) ;2=mirrored in X / 4=mirrored in Y

)

)

)

(defun searchmleaderstyle (mleaderstylename / mleaderstyledict searchresult)

(if

(setq mleaderstyledict (dictsearch (namedobjdict) “acad_mleaderstyle”))

(foreach x mleaderstyledict

(if

(and

(= (car x) 3)

(eq (strcase (cdr x)) (strcase mleaderstylename))

)

(setq searchresult t)

)

)

)

searchresult

)

(defun makemleaderstyle (newmleadername newmleadertextstyle)

(setq mleaderstyles (vla-item (vla-get-Dictionaries (vla-get-ActiveDocument (vlax-get-acad-object))) “ACAD_MLEADERSTYLE”))

(setq newmleaderstyle (vla-AddObject mleaderstyles newmleadername “AcDbMLeaderStyle”))

(vla-put-TextStyle newmleaderstyle newmleadertextstyle)

(vla-put-TextAngleType newmleaderstyle “1”)

(vla-put-ArrowSize newmleaderstyle “100”)

(vla-put-DoglegLength newmleaderstyle “100”)

(vla-put-TextHeight newmleaderstyle “100”)

(vla-put-TextLeftAttachmentType newmleaderstyle “3”)

(vla-put-TextRightAttachmentType newmleaderstyle “3”)

)

(setq newvalue (getreal “n input new size for text and arrow “))

(setq mleaderstyles (vla-item (vla-get-Dictionaries (vla-get-ActiveDocument (vlax-get-acad-object))) “ACAD_MLEADERSTYLE”))

(setq newmleaderstyle (vla-AddObject mleaderstyles “xycoordinates” “AcDbMLeaderStyle”))

(if

(= newvalue nil)

(princ “ndo not leave new size empty!!!”)

(progn

(if

(= (searchmleaderstyle “xycoordinates”) nil)

(progn

(if

(= (tblsearch “style” “xycoordinates”) nil)

(maketextstyle “xycoordinates”)

)

(if

(= (tblsearch “layer” “xycoordinates”) nil)

(makelayer “xycoordinates” 1)

)

(if

(= (searchmleaderstyle “xycoordinates”) nil)

(makemleaderstyle “xycoordinates” “xycoordinates”)

)

(vla-put-ArrowSize newmleaderstyle newvalue)

(vla-put-DoglegLength newmleaderstyle newvalue)

(vla-put-TextHeight newmleaderstyle newvalue)

)

(progn

(vla-put-ArrowSize newmleaderstyle newvalue)

(vla-put-DoglegLength newmleaderstyle newvalue)

(vla-put-TextHeight newmleaderstyle newvalue)

)

)

)

)

(princ)

)

(princ “nCreated by Trusted_dwg”)

(princ “nWrite coordinate with MLEADER. Command : XY, XYT”)

(princ “nNaver Blog : https://blog.naver.com/trusted_dwg”)

(princ “nYoutube : https://www.youtube.com/trusted_dwg”)

(princ)
